In collaboration with Caroline Slick + Erica Lee
Cardinal
The Packboard designed for the rigor of Search and Rescue.
![](https://cdn.myportfolio.com/b212697b7ddd3f21c3c2af8784ce4473/da22ef42-49ce-40f0-a48d-898ec7cdd4bf_rw_3840.jpg?h=708c415e05aa6d34d66433b42fd0e35f)
![](https://cdn.myportfolio.com/b212697b7ddd3f21c3c2af8784ce4473/7c55b32c-059a-48c0-b881-cf6e314330dd_rw_1920.jpg?h=f6d2cda8cce99cc07519ad627a512e8e)

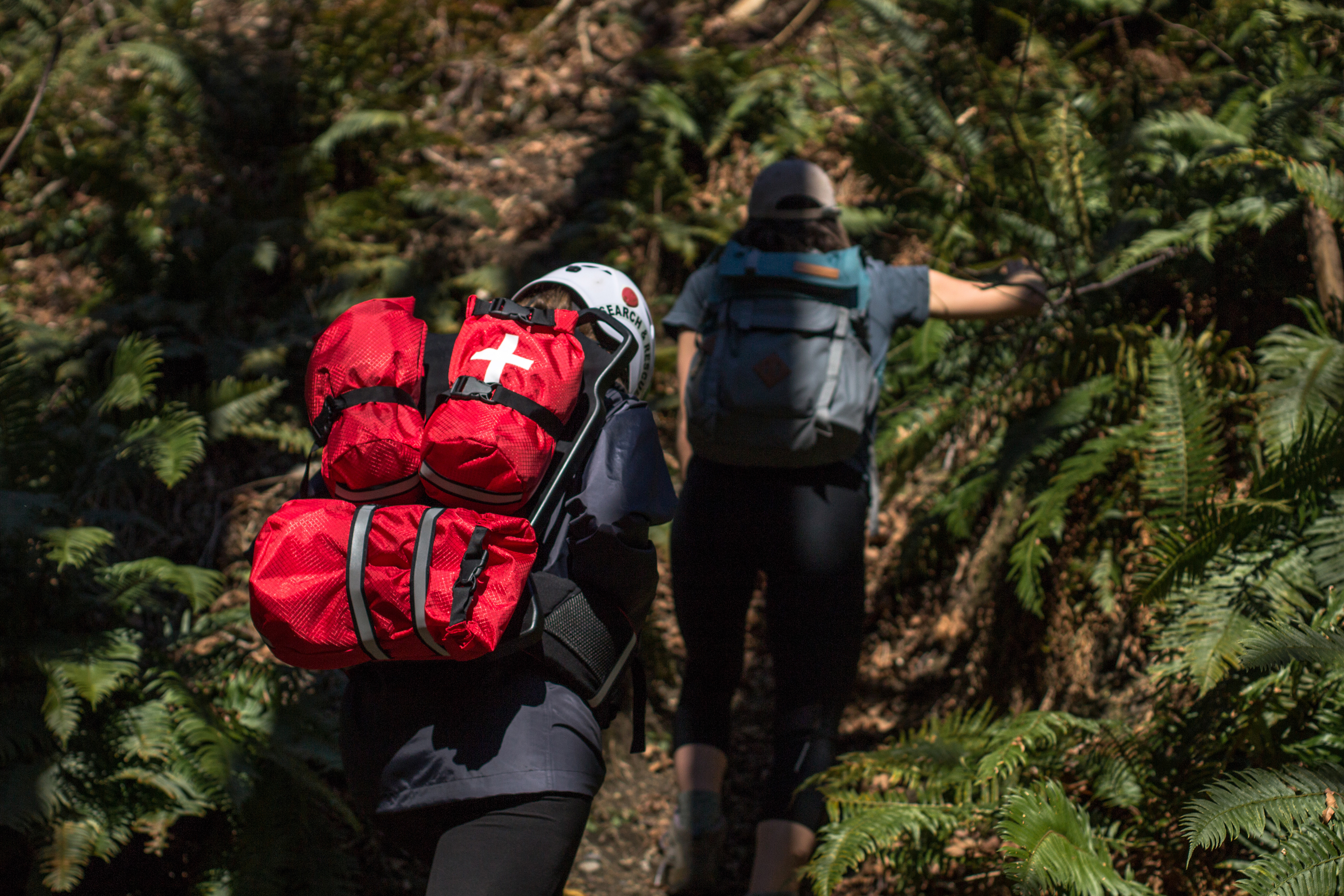

![](https://cdn.myportfolio.com/b212697b7ddd3f21c3c2af8784ce4473/62161563-734c-4eb8-bb6c-033e0ff7cf50_rw_3840.jpg?h=dd20fc18211fc7b22b74d35e8798e0c6)
![](https://cdn.myportfolio.com/b212697b7ddd3f21c3c2af8784ce4473/2a5a74fb-3618-4fda-adec-5c1eef367b9a_rw_1920.jpg?h=68692fc7916237e1e341148f0c370e24)
![](https://cdn.myportfolio.com/b212697b7ddd3f21c3c2af8784ce4473/d34db849-9191-48ce-addb-2d2d8362260e_rw_1920.jpg?h=168ef7169290411b3dcdc1f38bbaafb3)

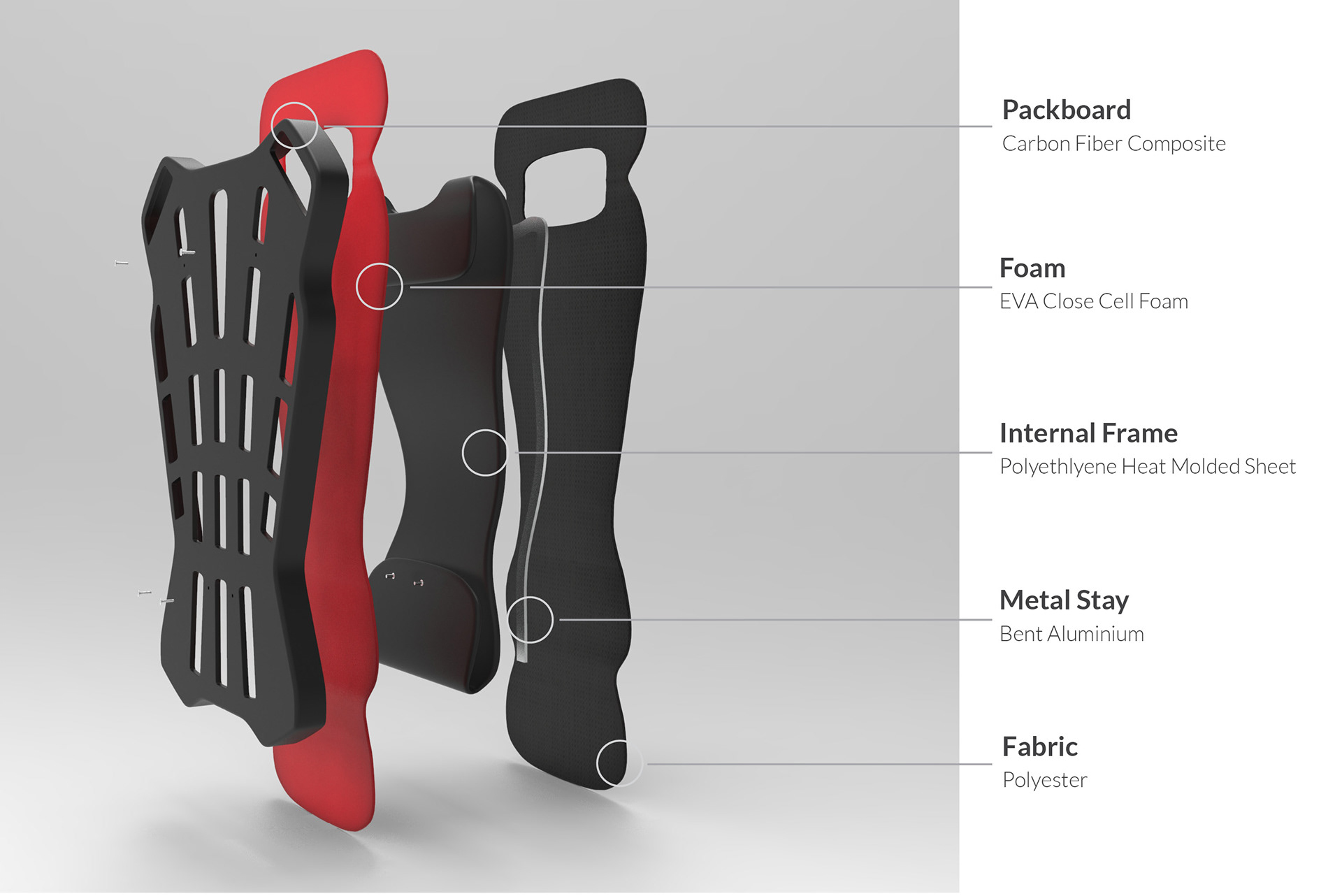

A two-piece frame and harness system which provides weight distribution and comfort.
The packboard provides a range of lashing points to attach a variety of equipment and allows easy access for the duration of missions.

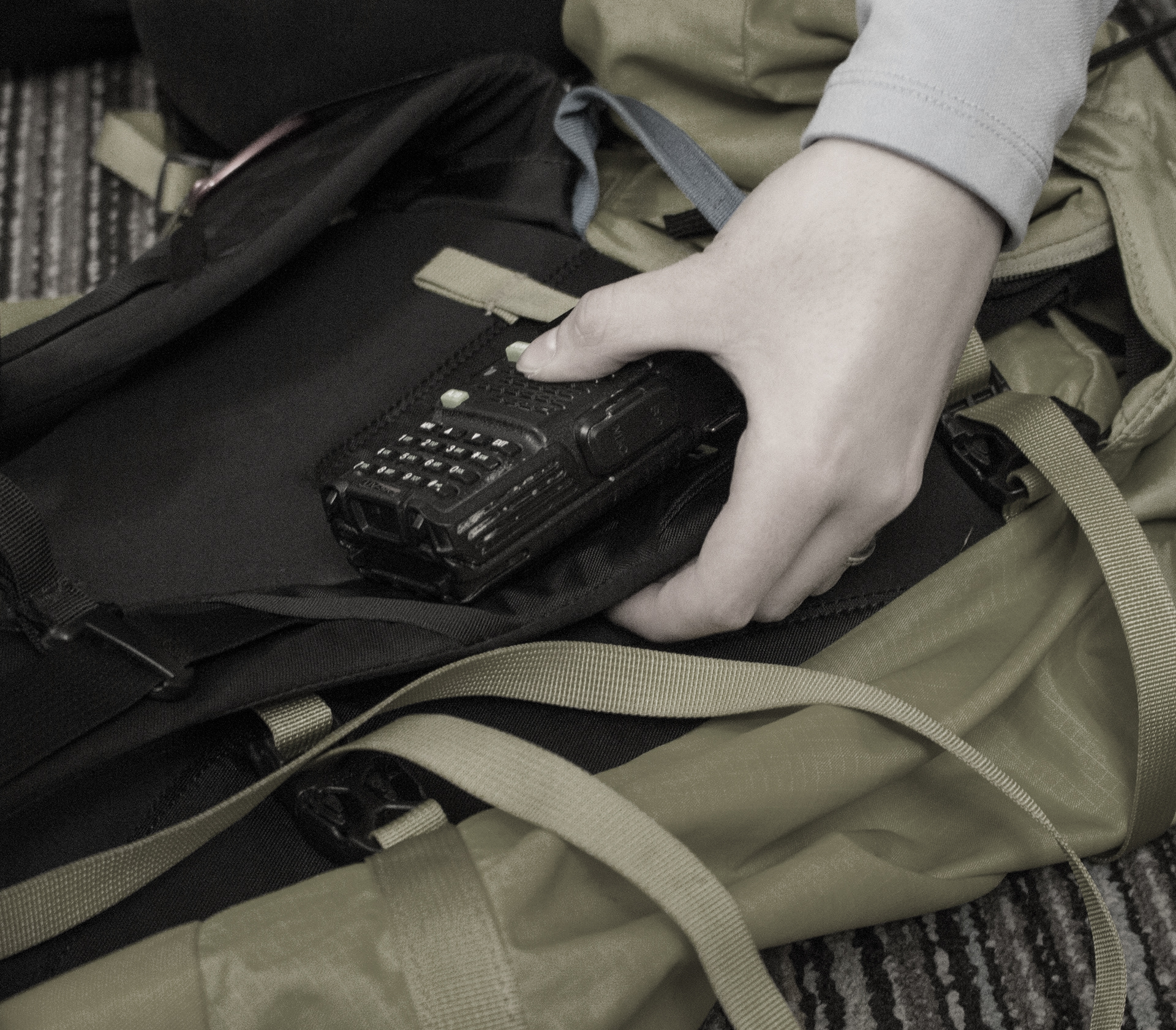

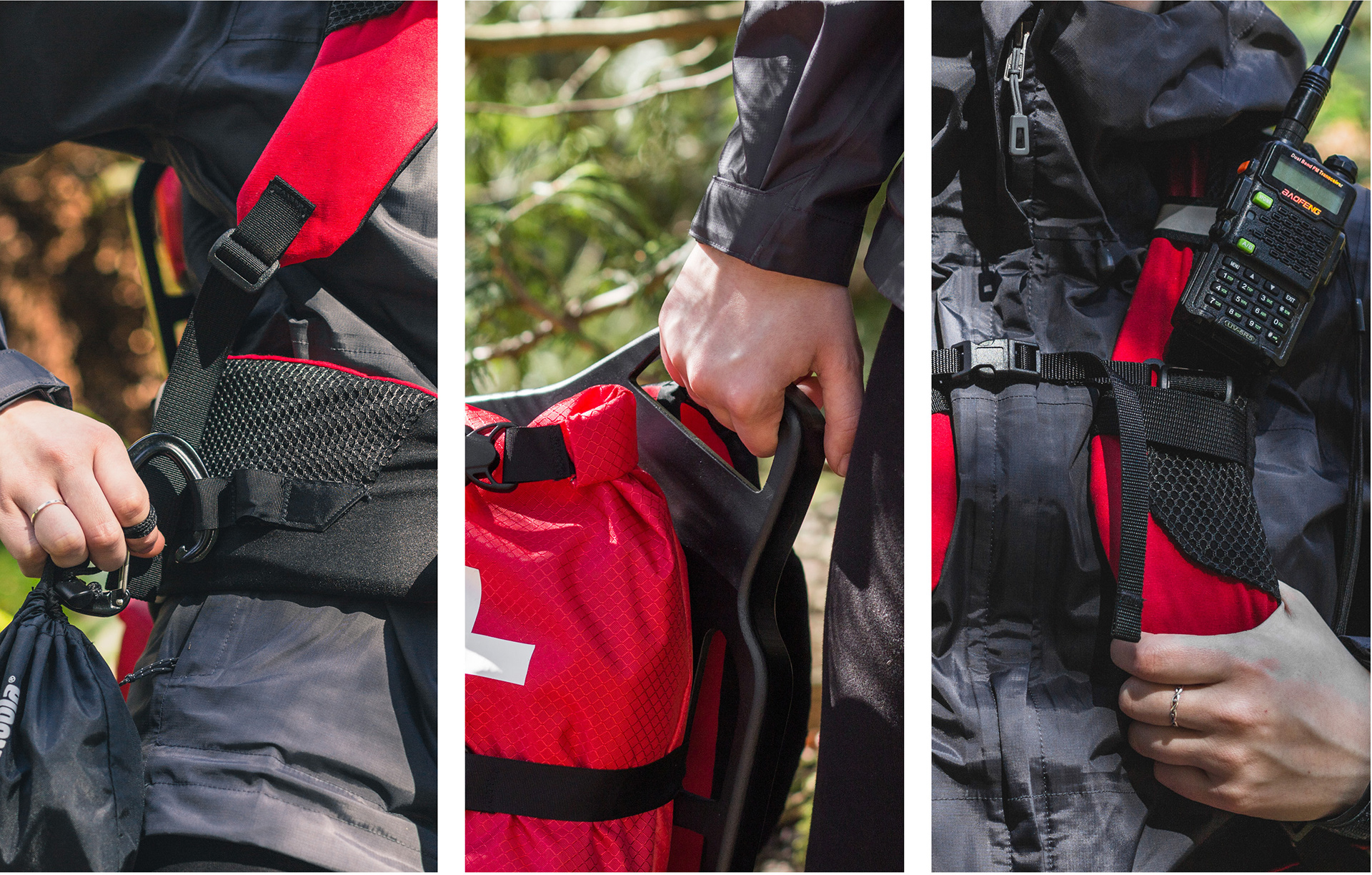

Cardinal's design also features waist belt carabiner loops, top carry handles and walkie-talkie attachments.
![](https://cdn.myportfolio.com/b212697b7ddd3f21c3c2af8784ce4473/78bb0e63-d44a-4bdd-a4c1-b057a42eb1d6_rw_3840.jpg?h=b12e6ae6566e0132cd295b1942a6c4cb)
________________________________________________________________________
Design Process
Continue to learn about the process and development behind this design.
Our Focus:
+ Mountain Wilderness Rescue
+ Volunteer Force
+ Urban Commuter
![](https://cdn.myportfolio.com/b212697b7ddd3f21c3c2af8784ce4473/549c2a1b-2b14-4dec-a22e-23f20f253b21_rw_3840.jpg?h=f9f73013e57f8828812da183b2250844)
Research
Meet Amy.
EMT-trained student who volunteers for missions with Search and Rescue in Washington.
![](https://cdn.myportfolio.com/b212697b7ddd3f21c3c2af8784ce4473/ddbeafb1-4c62-4914-b277-6503f2be300c_rw_1920.jpg?h=ec3727086bb42dab2b8c768286356904)
![](https://cdn.myportfolio.com/b212697b7ddd3f21c3c2af8784ce4473/7743b5fa-f123-4344-8b7e-e36bfe9fb8c0_rw_3840.jpg?h=ef3e2c058fe3069d32045bb5e65e398f)
![](https://cdn.myportfolio.com/b212697b7ddd3f21c3c2af8784ce4473/10e1167b-101c-48f9-8793-e8fa19bf66b8_rw_3840.jpg?h=65903c495f8dd4233a2cbcdc580423c2)
![](https://cdn.myportfolio.com/b212697b7ddd3f21c3c2af8784ce4473/4b2e2ae8-bceb-4a63-9e49-74c60436d80c_rw_3840.jpg?h=a50f7d02cc661ac480960a739542d8a8)
![](https://cdn.myportfolio.com/b212697b7ddd3f21c3c2af8784ce4473/b9796f46-4bf8-4f36-818e-05b978ce1868_rw_3840.jpg?h=443de38ea00c31d3ac8c24d7022f8625)
![](https://cdn.myportfolio.com/b212697b7ddd3f21c3c2af8784ce4473/a6bfcfd2-5fb7-4220-9613-acdadb6e4439_rw_3840.jpg?h=ce40b899270648d14ebdaef5e1f96ddf)
![](https://cdn.myportfolio.com/b212697b7ddd3f21c3c2af8784ce4473/481824eb-502b-4afb-81b9-c834e7c9c48f_rw_3840.jpg?h=ced4a1b6b6fc9b2b6434879bc516b667)
![](https://cdn.myportfolio.com/b212697b7ddd3f21c3c2af8784ce4473/87979f37-1db5-4bcc-b2c1-cf517e1b9875_rw_1920.jpg?h=5e34fab24632873b22811c233c994191)

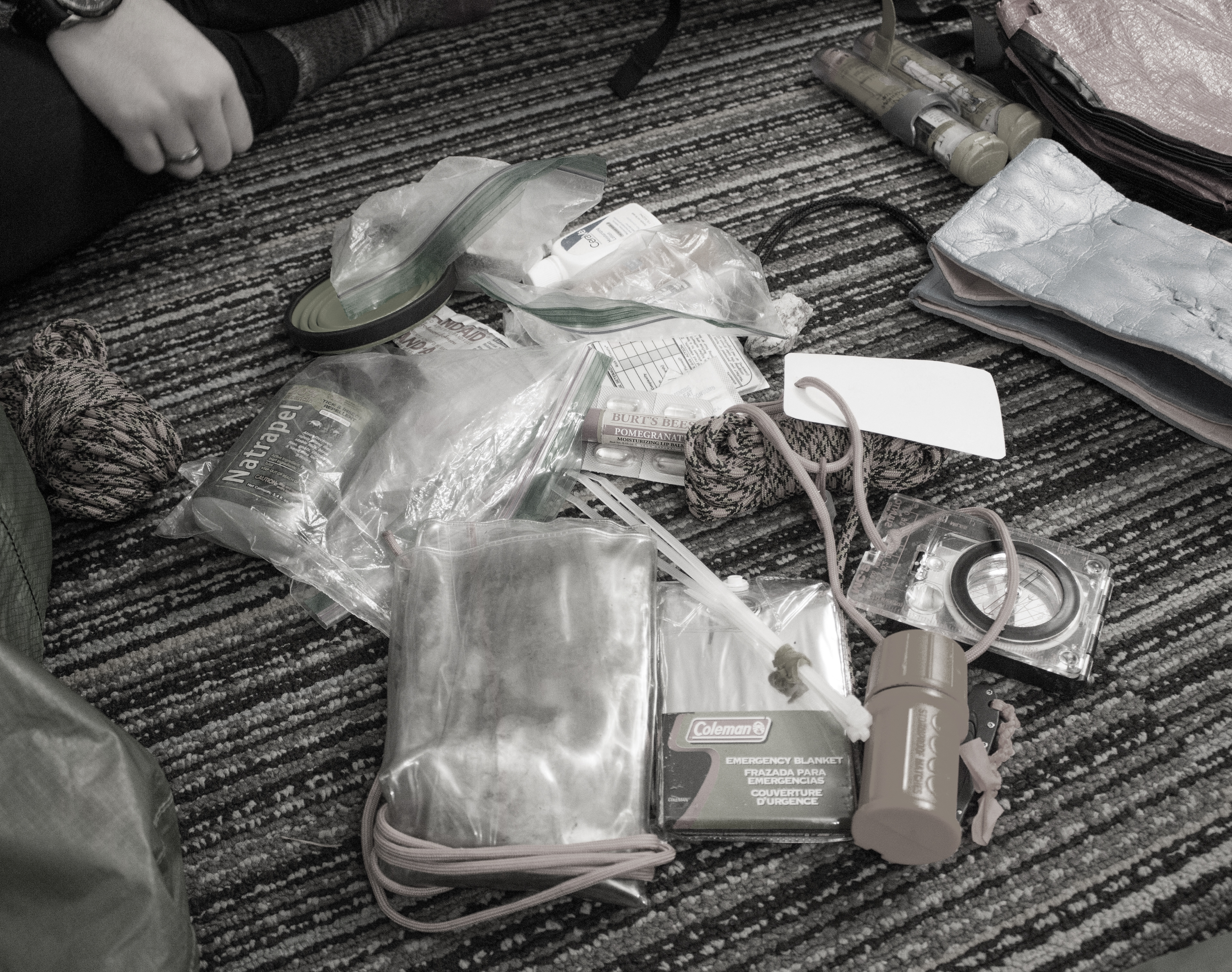

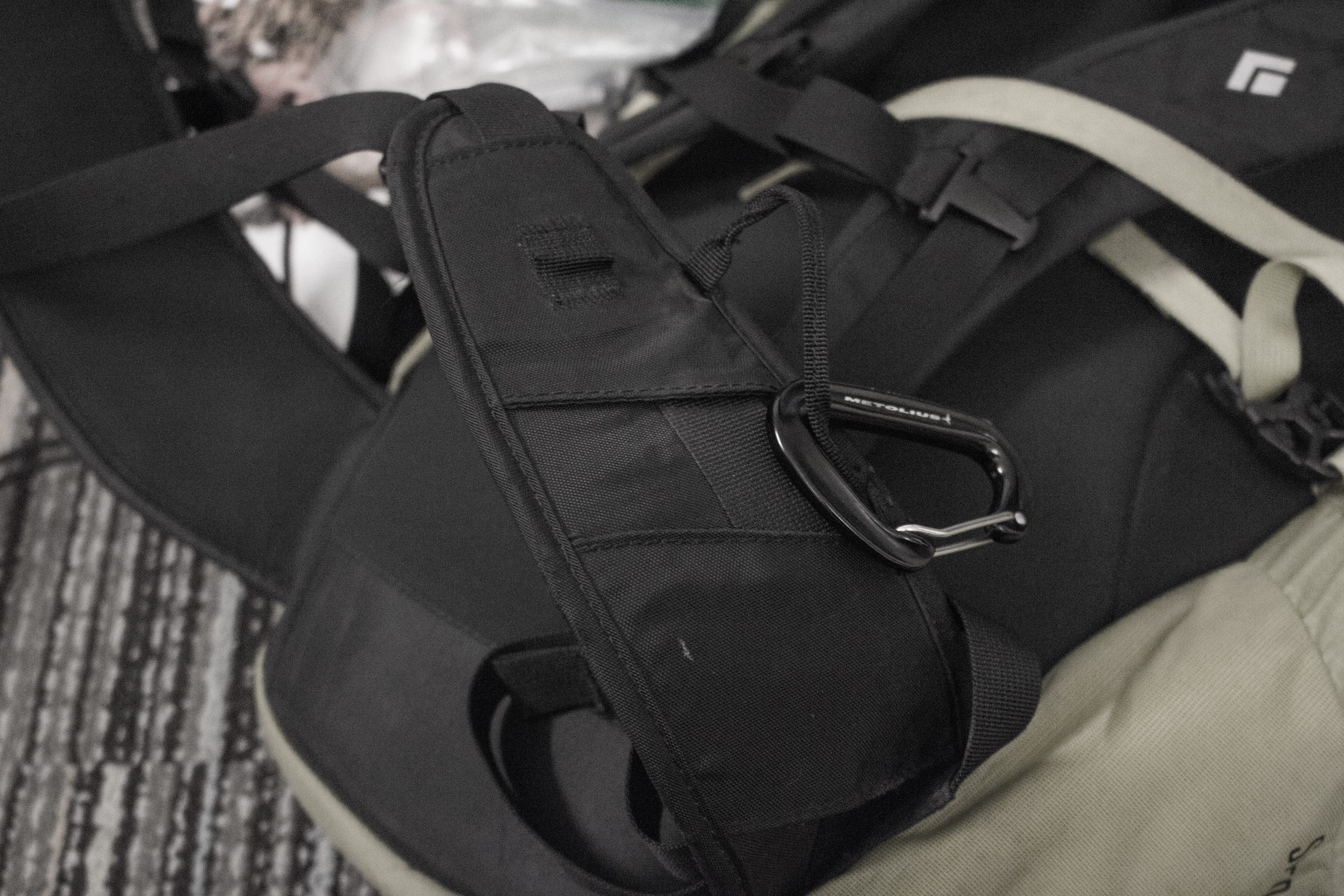

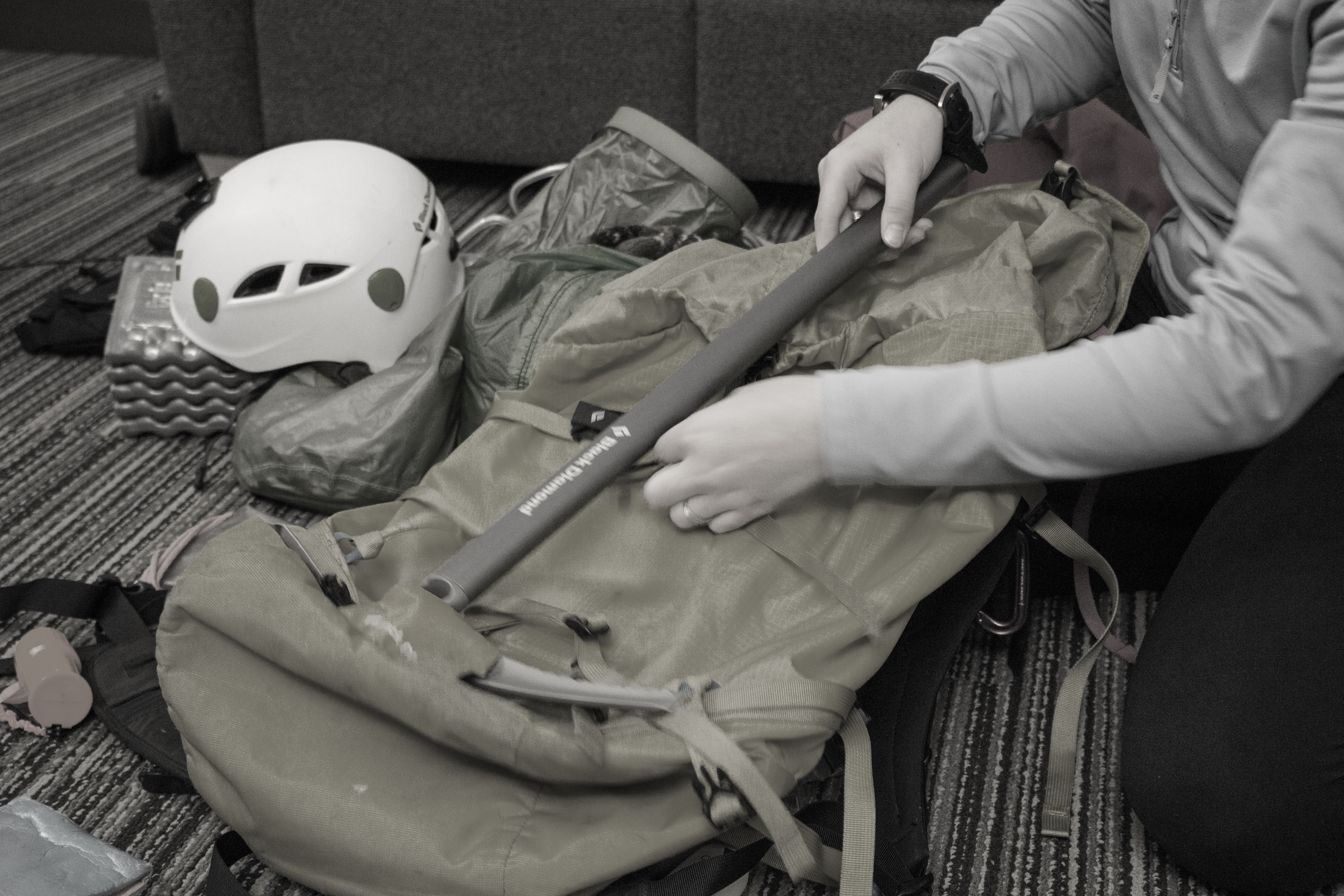

Inventory (a "48-hour pack")
+ Harness + Crampons
+ Radios + Foam mat
+ Stove + First Aid Kit
+ Water bladder + Sleeping Pad
+ Microspikes + Splints
+ Helmet + Ice pick
+ Tarp + Space Blanket
"Being able to open the bottom of the bag would be radical"
"Having an area to lash the litter through the back is critical"
![Litter Half](https://cdn.myportfolio.com/b212697b7ddd3f21c3c2af8784ce4473/d3c02ca9-27f1-4ca8-a6fe-ffa69e8249c7_rw_1920.jpg?h=eef87a598e4200e8e4737ae142e4b7cd)
Litter Halves
A litter is a type of stretcher typically used in Search and Rescue missions.
They are often carried on volunteers' backpacks in 4 parts: two halves, a bracket and a wheel.
Ideation + Prototyping
How might we design a pack that accommodates for the rigor and tools needed for Search and Rescue missions?
How can we incorporate accessibility, modularity and litter half accommodation?
![](https://cdn.myportfolio.com/b212697b7ddd3f21c3c2af8784ce4473/bf13e5c3-9608-4bb2-9469-075f3ef60369_rw_1920.jpg?h=9217b80720a51a02236df54f6f8a0a31)
![](https://cdn.myportfolio.com/b212697b7ddd3f21c3c2af8784ce4473/d69d8632-3ae3-4ded-a02e-2fa02cf0addf_rw_1920.jpg?h=7e58bbecdcfecddd0c2cfbd50d15b34c)
![](https://cdn.myportfolio.com/b212697b7ddd3f21c3c2af8784ce4473/d9c43c10-6ff1-47dd-9c8d-41c36c1b1521_rw_1920.jpg?h=cf3e6ddb85a43f591f7252874ca640c0)
![](https://cdn.myportfolio.com/b212697b7ddd3f21c3c2af8784ce4473/d494d914-c50c-4b5e-9d34-12a821a62352_rw_1920.jpg?h=61354d4317079806b06328d795779033)
![](https://cdn.myportfolio.com/b212697b7ddd3f21c3c2af8784ce4473/18ab2754-a670-4944-9aee-f92d3f440613_rw_1920.jpg?h=da765594f054adee2e95c0af8d50ea41)
![](https://cdn.myportfolio.com/b212697b7ddd3f21c3c2af8784ce4473/83fbae4c-89e6-4138-8a01-381b338785b4_rw_1920.jpg?h=d929813482a65f3f43892aa7e292953a)
![](https://cdn.myportfolio.com/b212697b7ddd3f21c3c2af8784ce4473/ce434e35-ec7e-4dbb-b302-a067fd713246_rw_1920.jpg?h=c8fc2b3ed415b45f5c761c10ed91a76e)

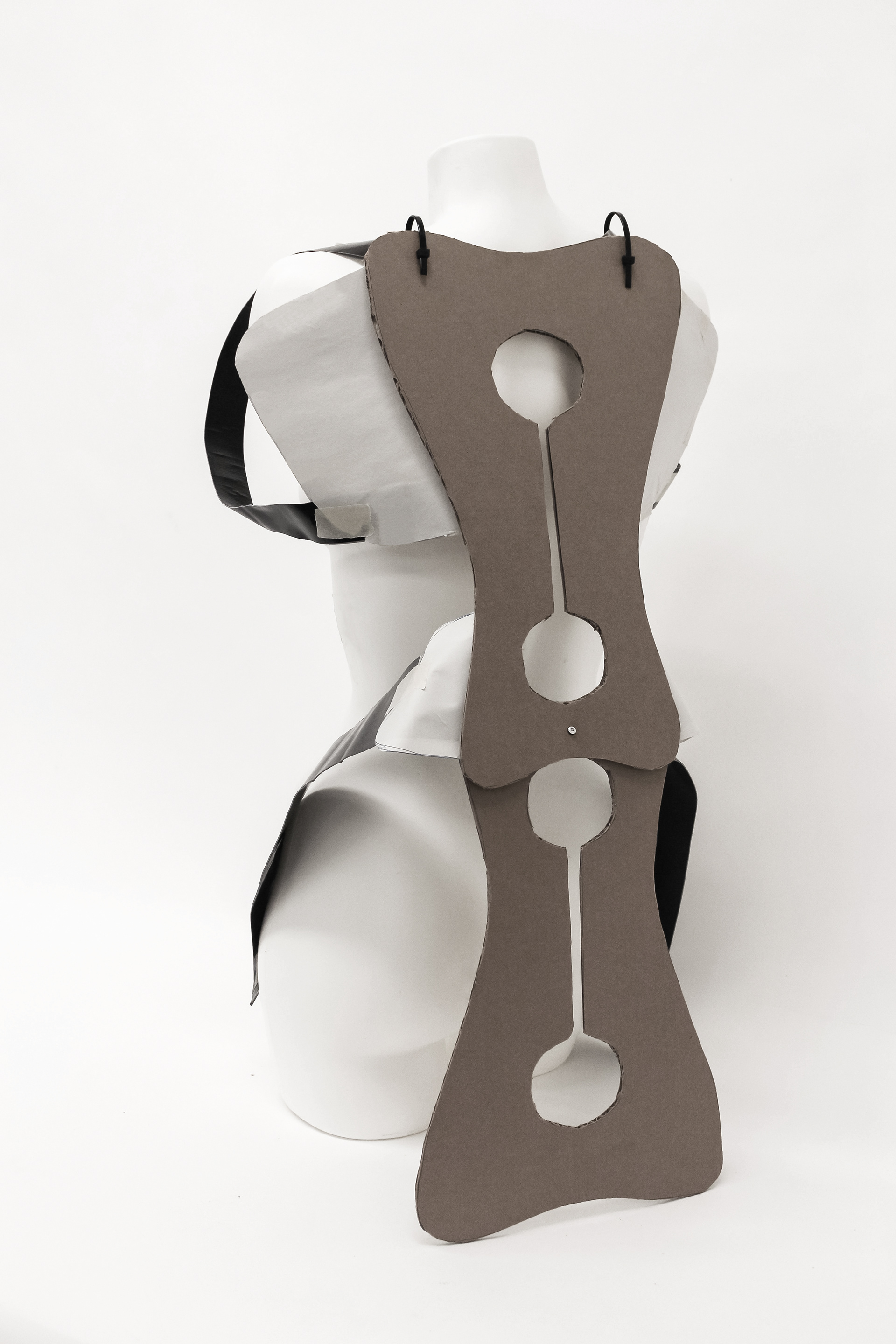

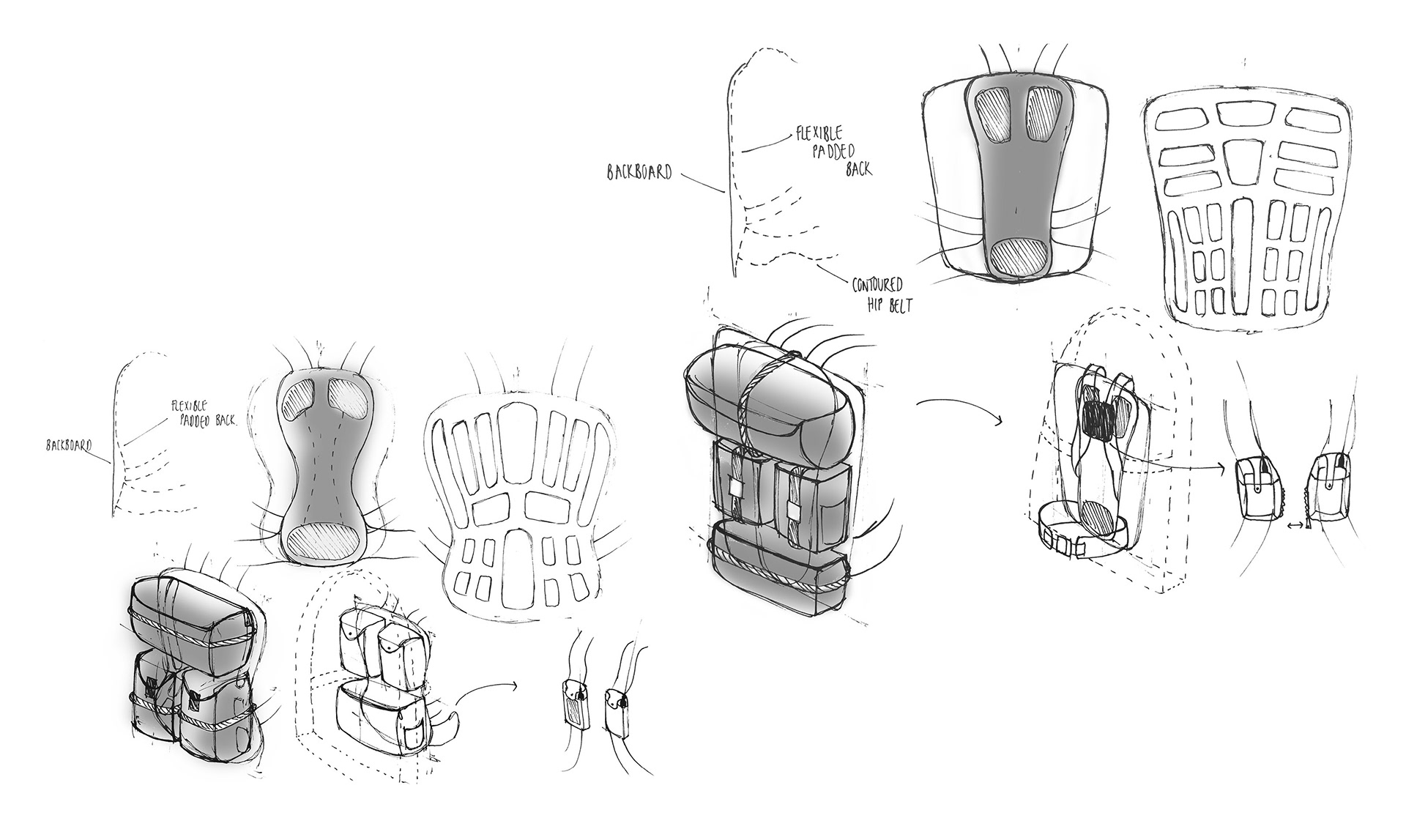

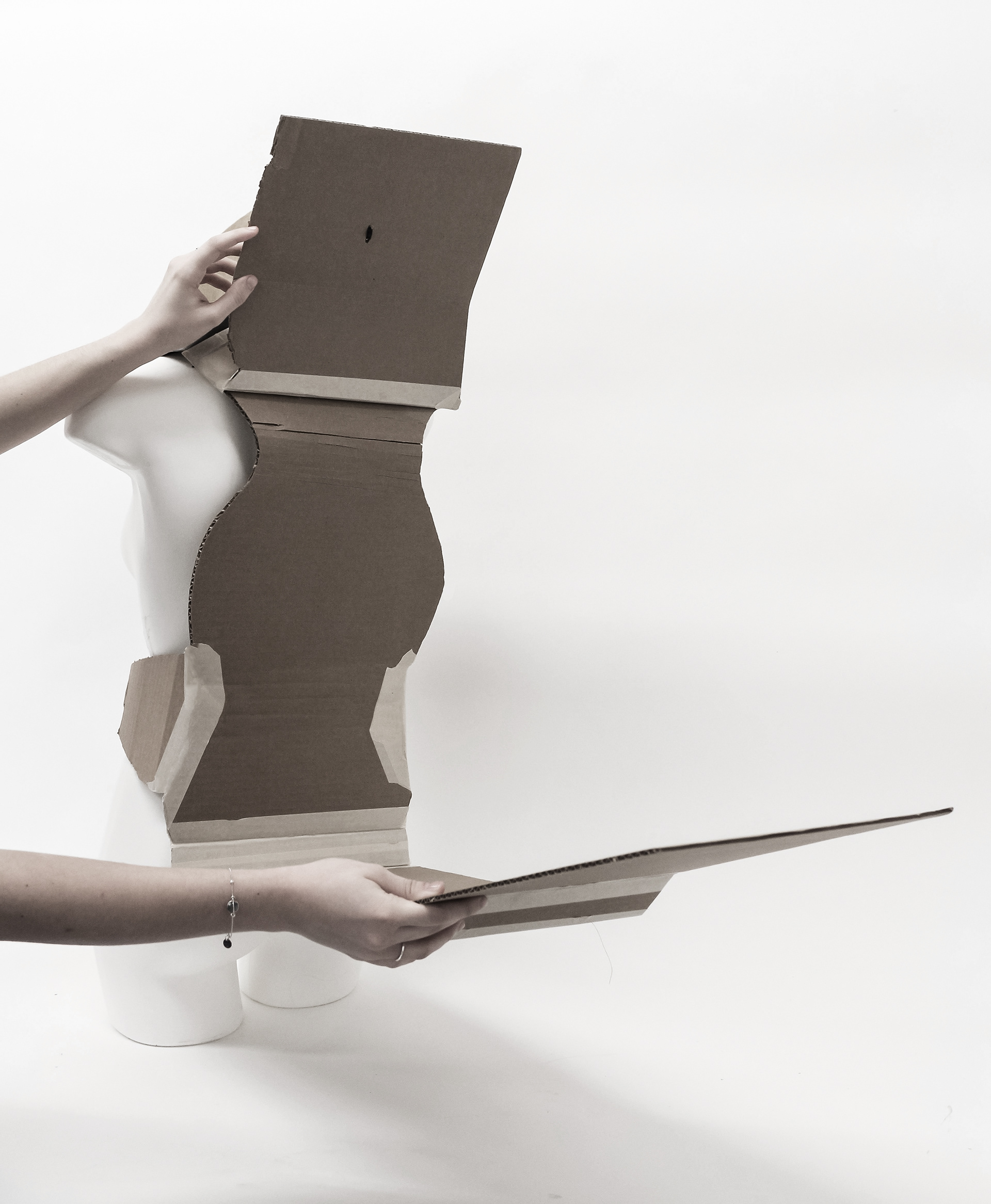

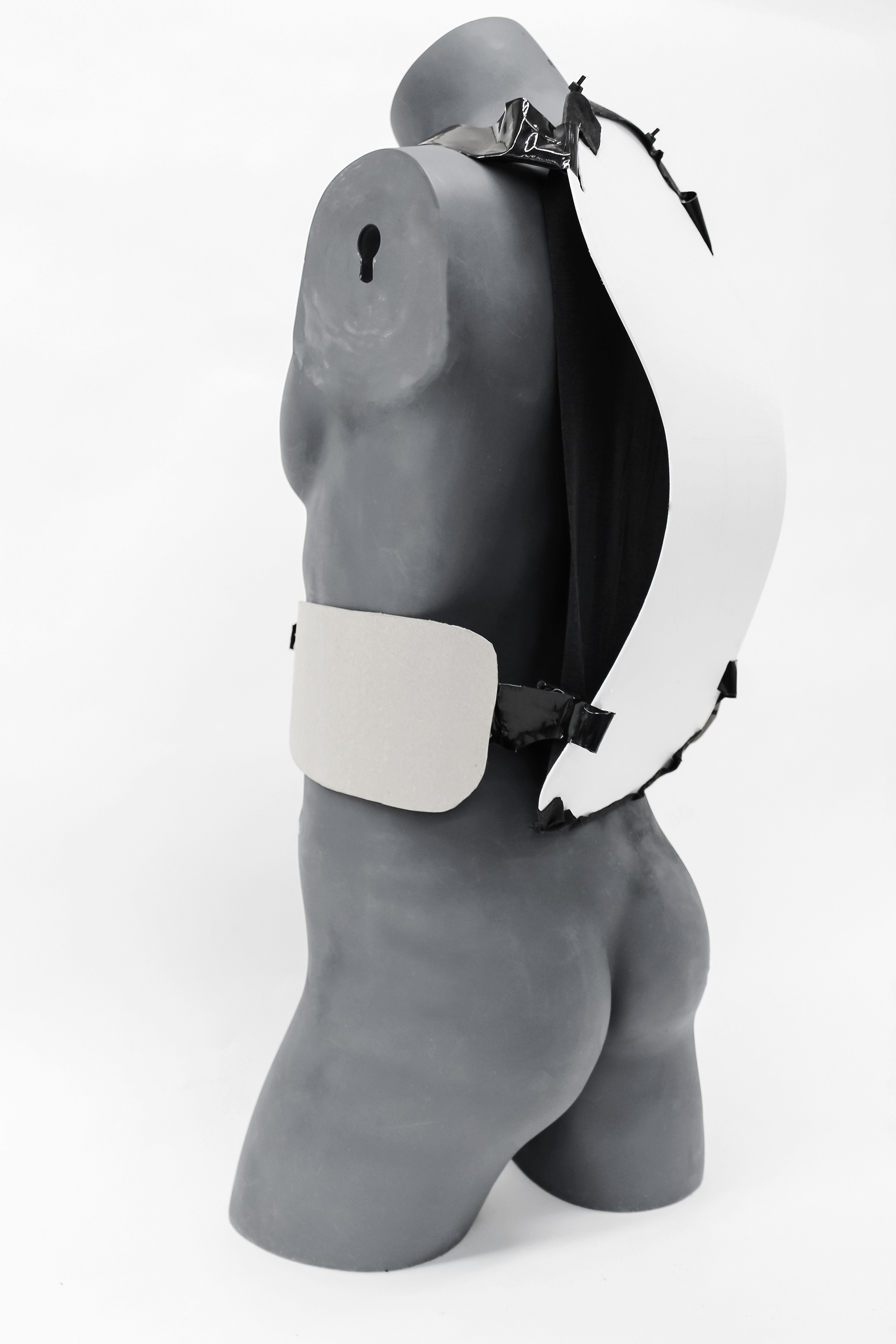

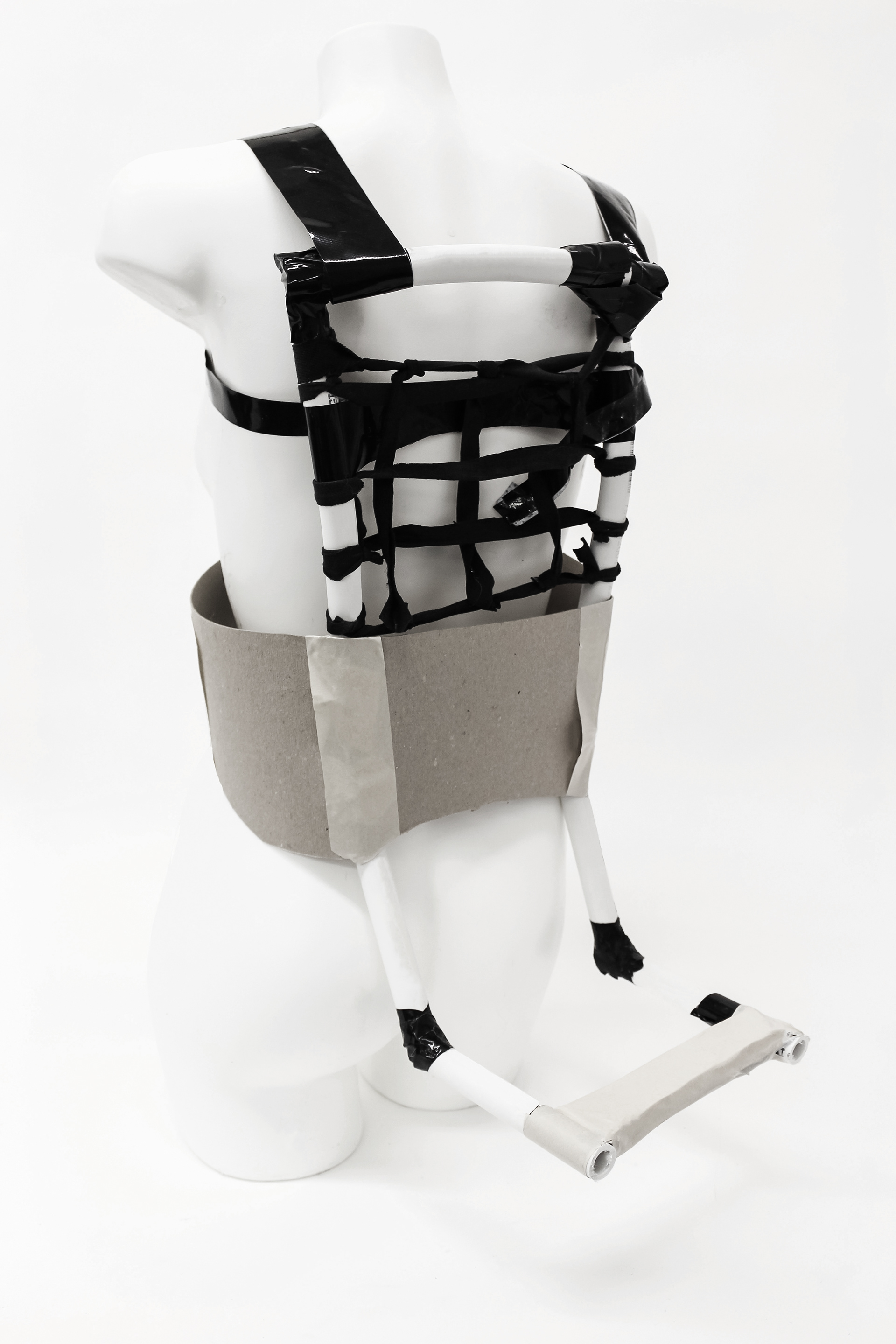

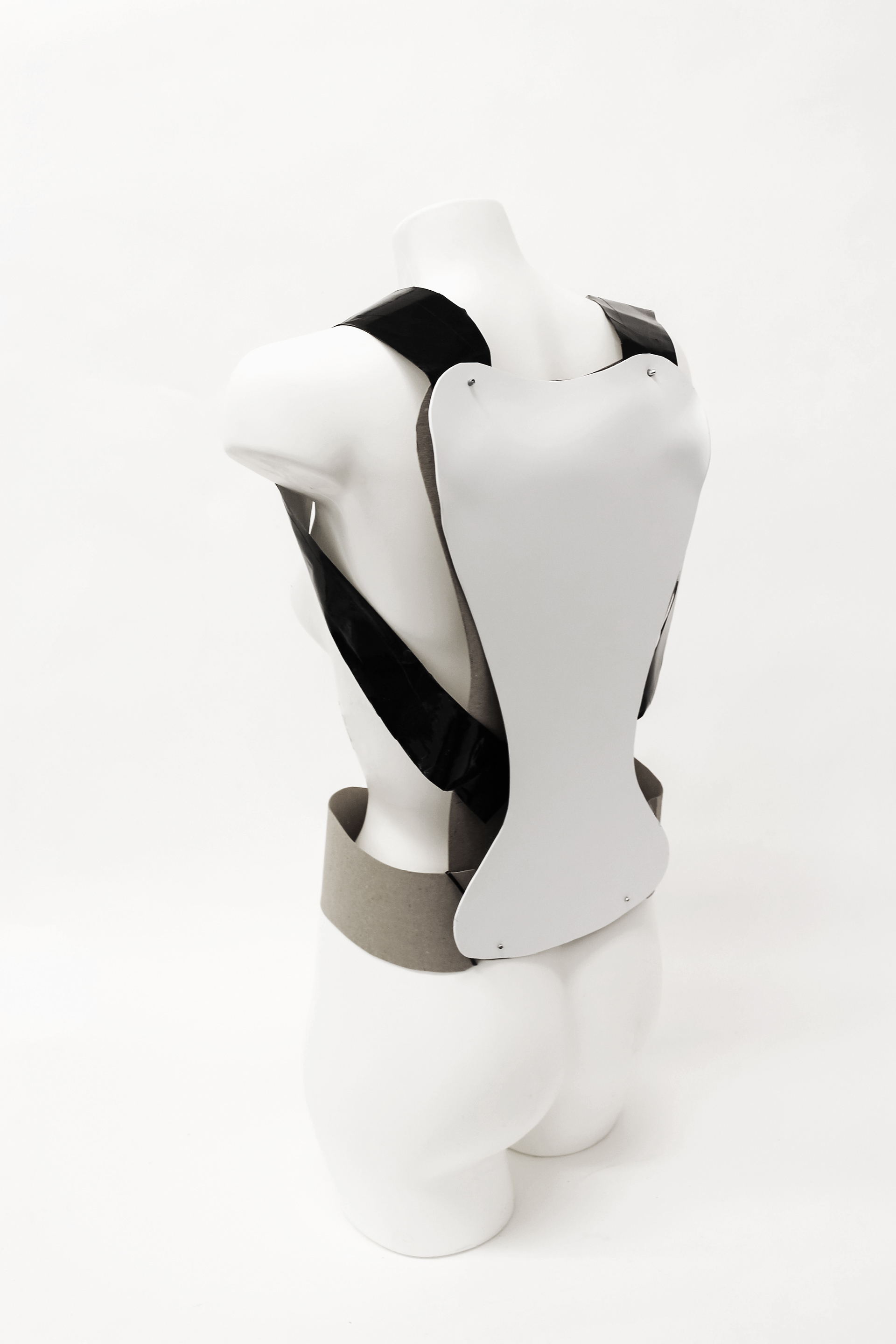

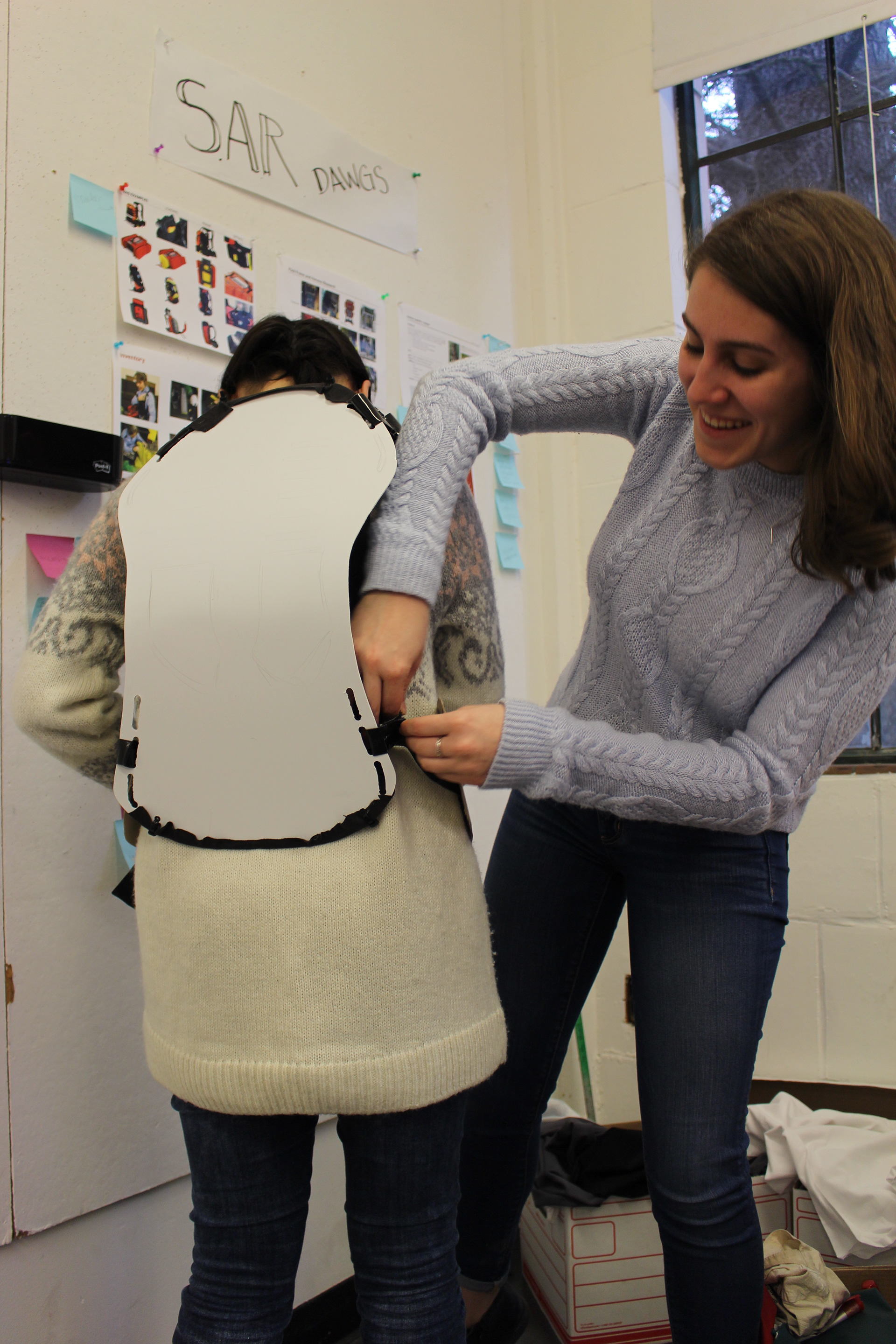

Our early ideation and prototyping explored sliding, pivoting and folding frames.

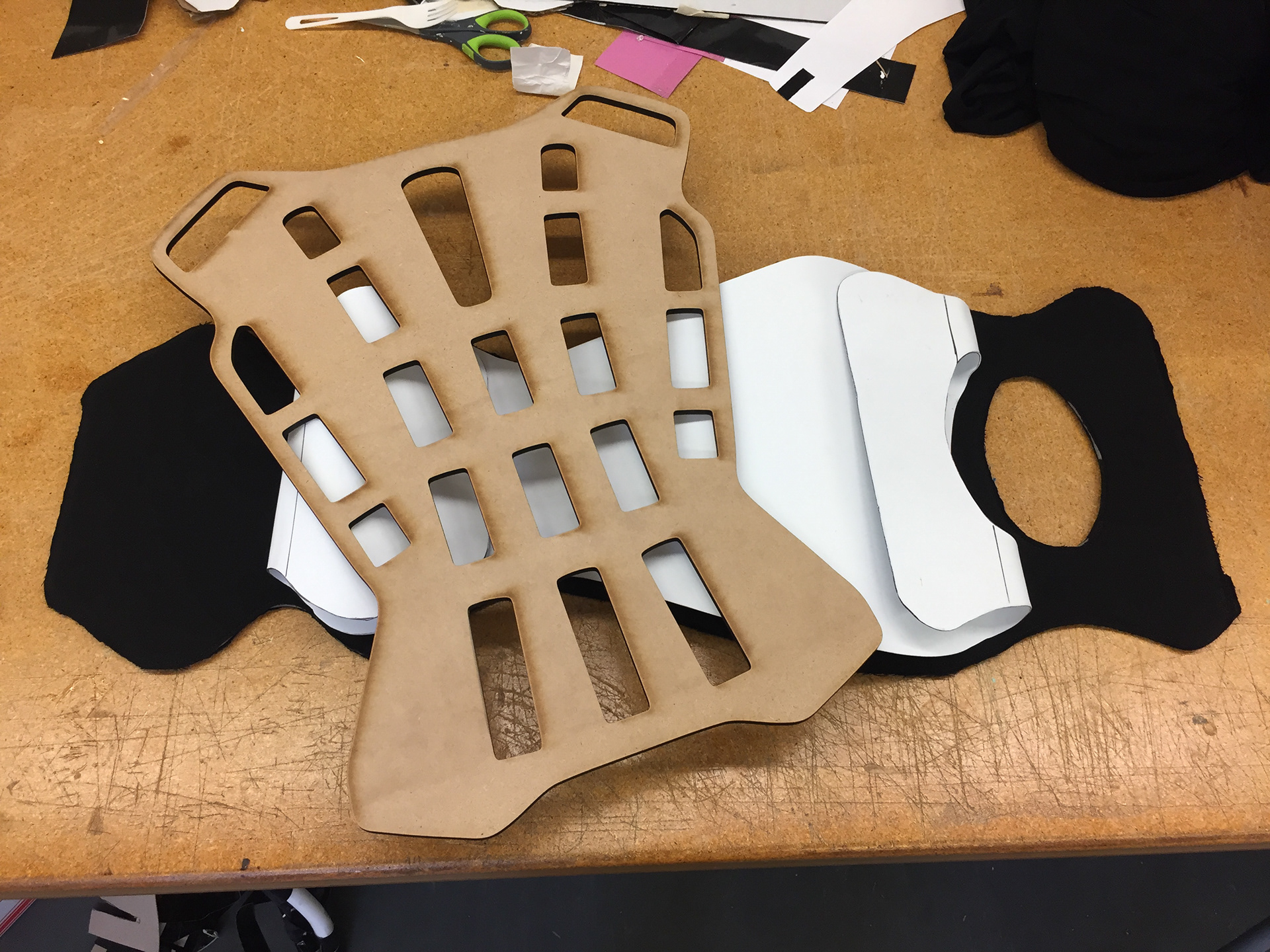

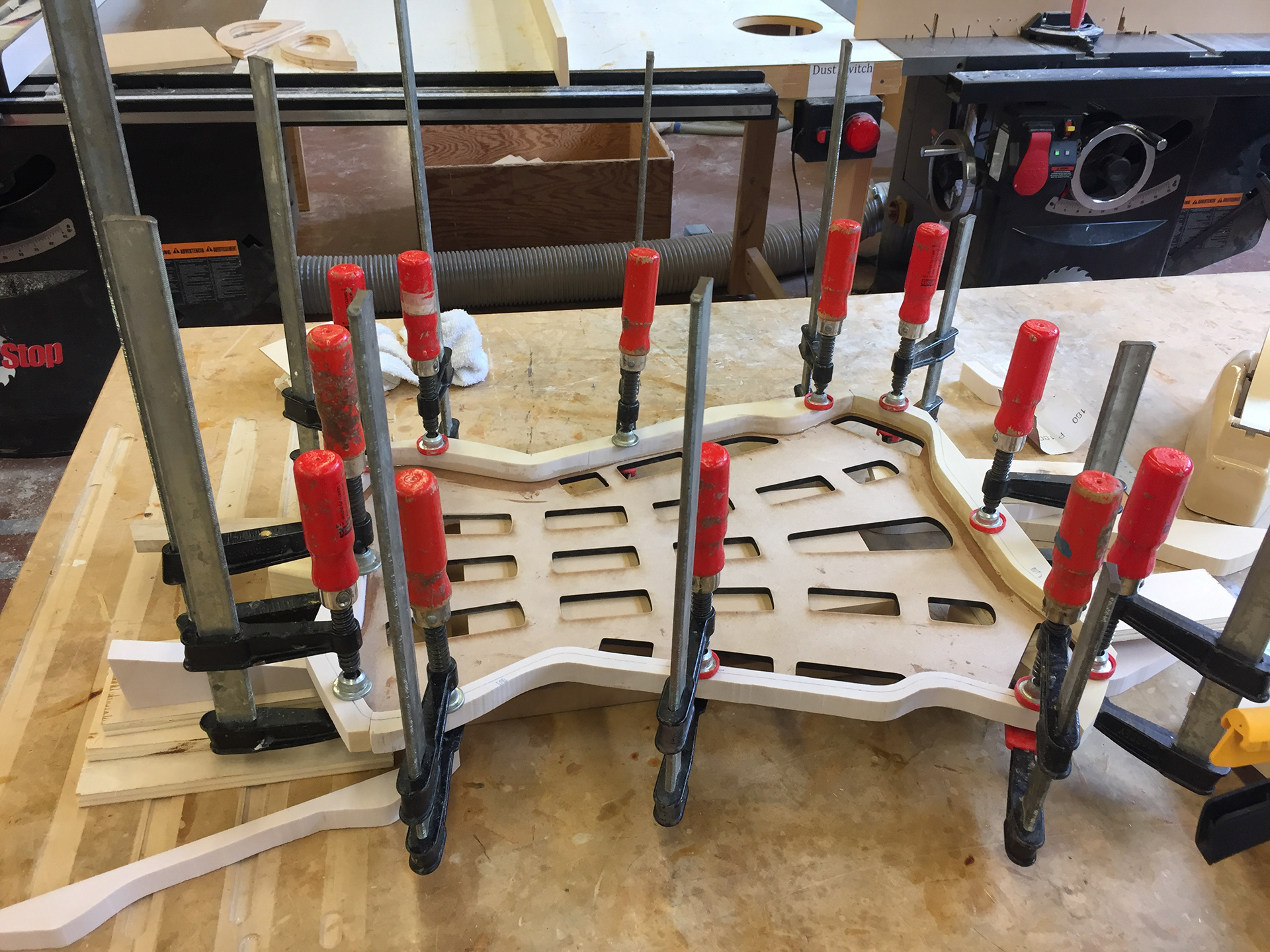

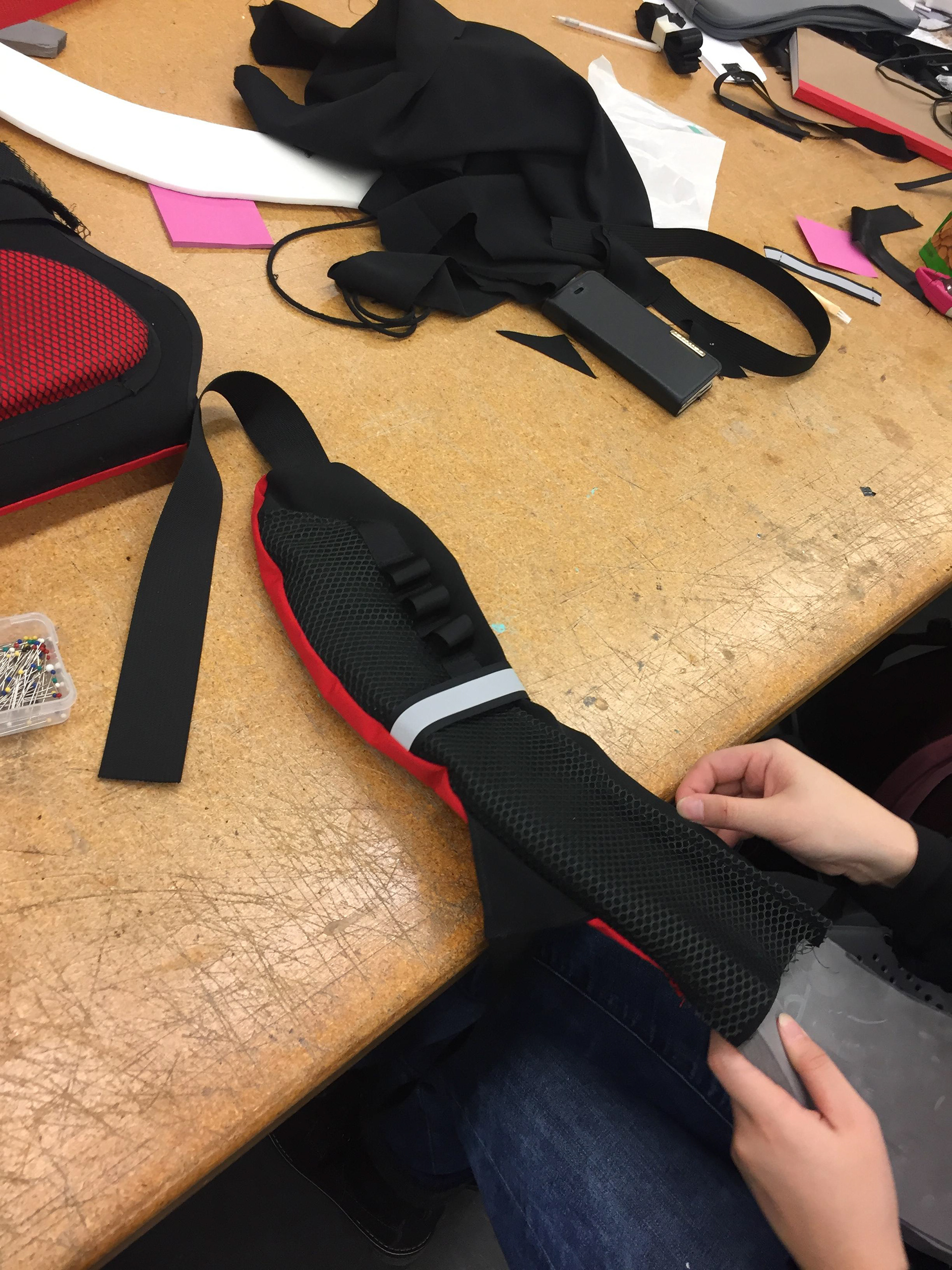

Later load-bearing prototypes explored the ways in which the harness and frame would interact and connect while providing comfort for the user.
This phase of development lead us to decide on a pack board as the main frame system for the pack.

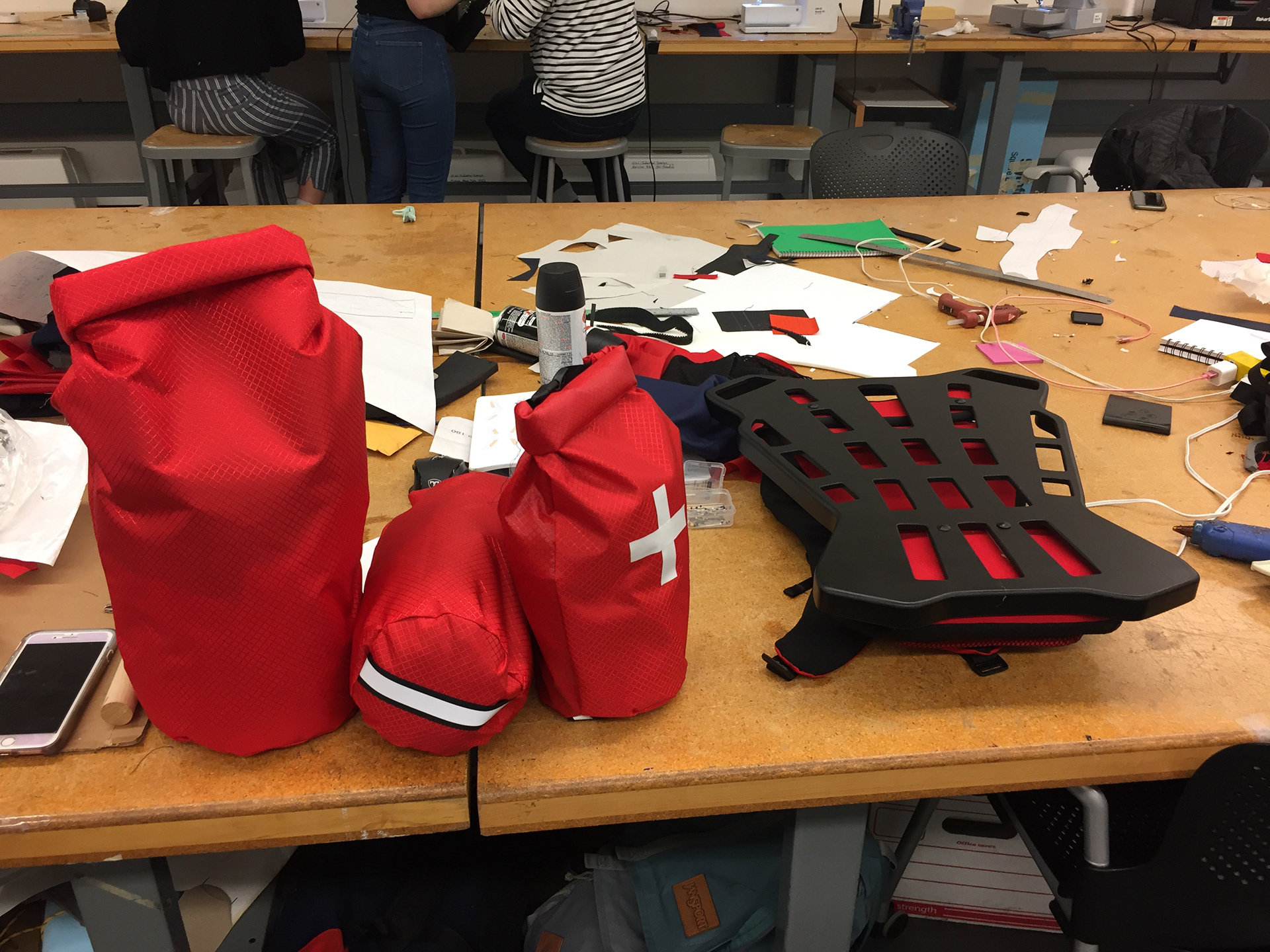

Exploration

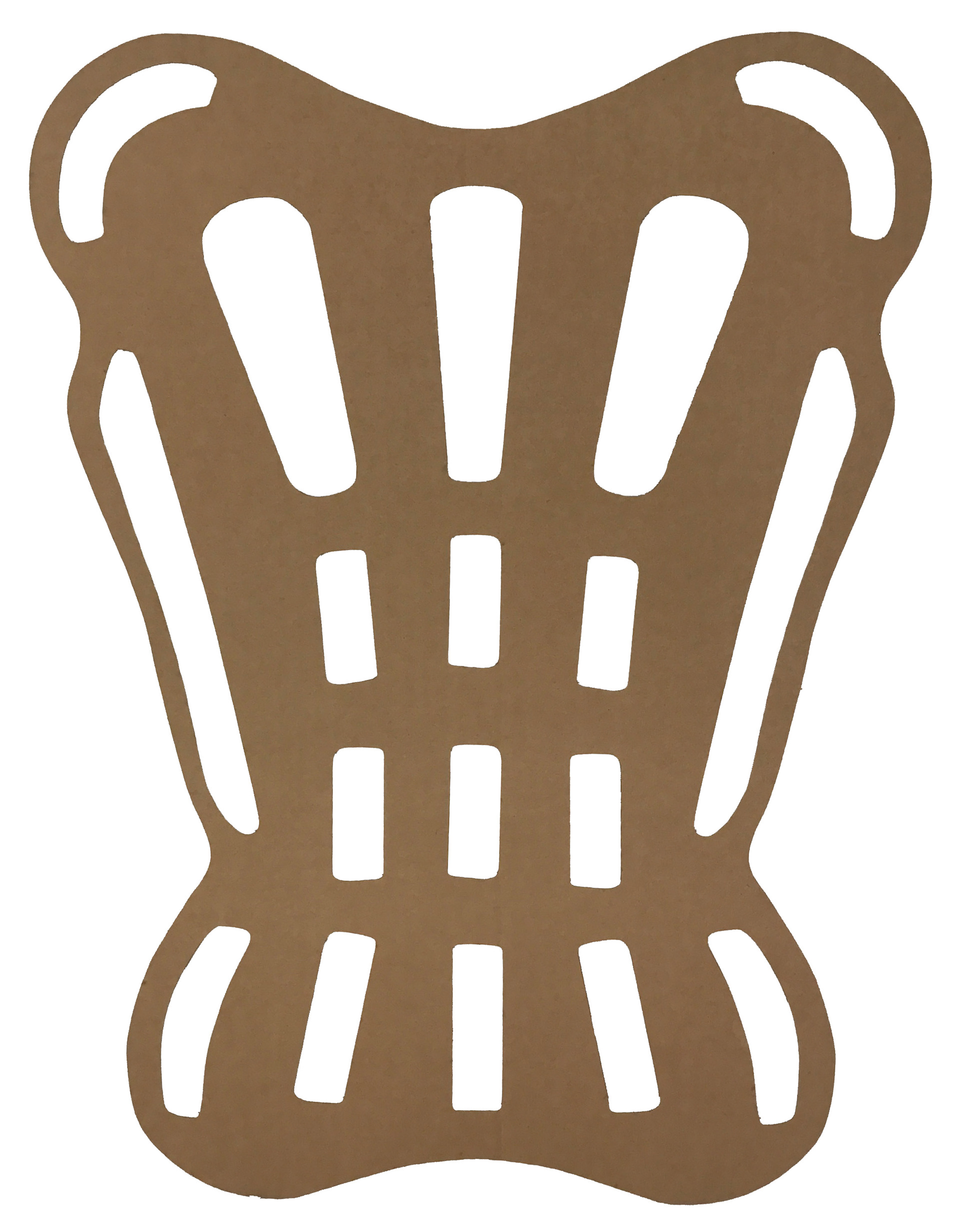

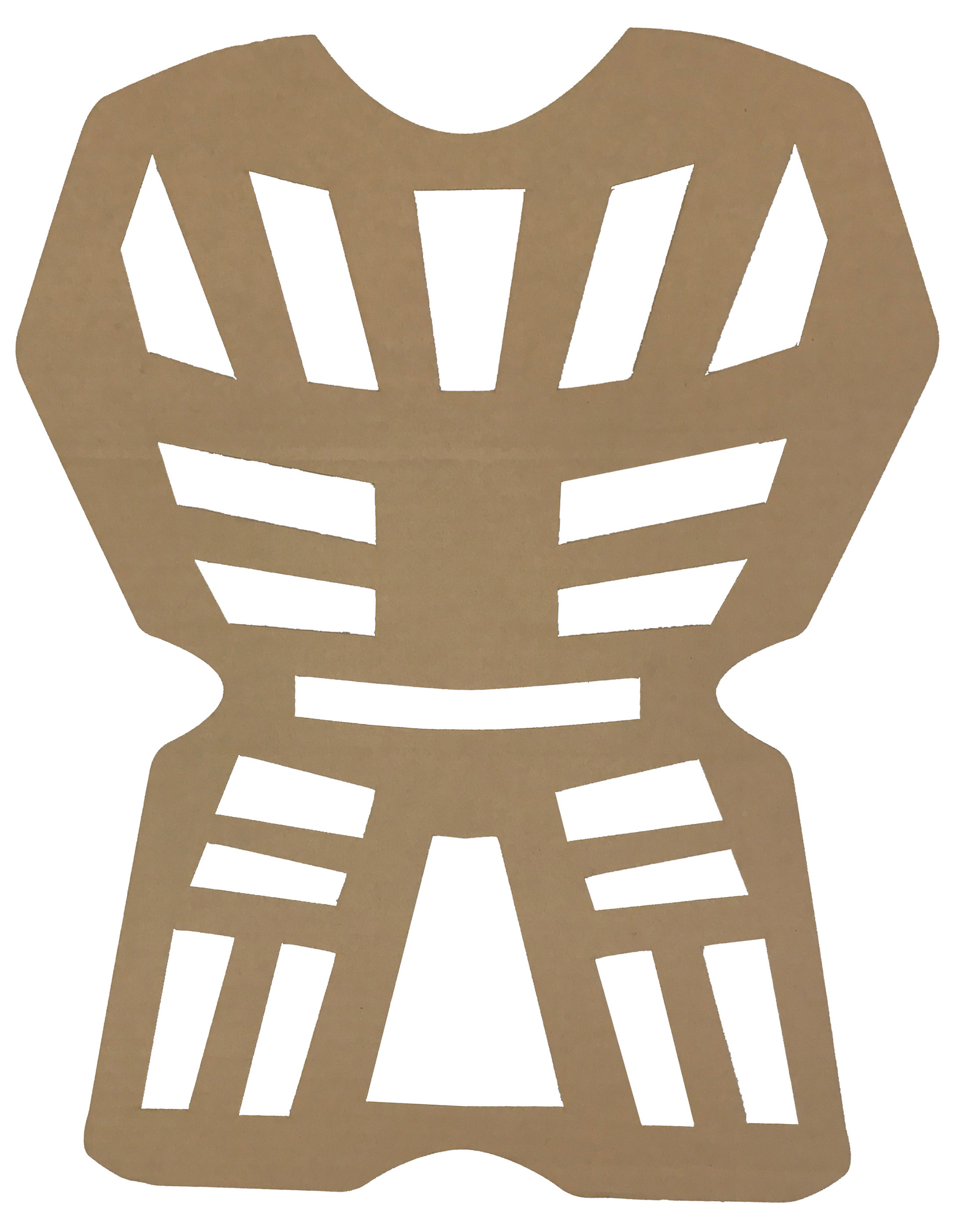

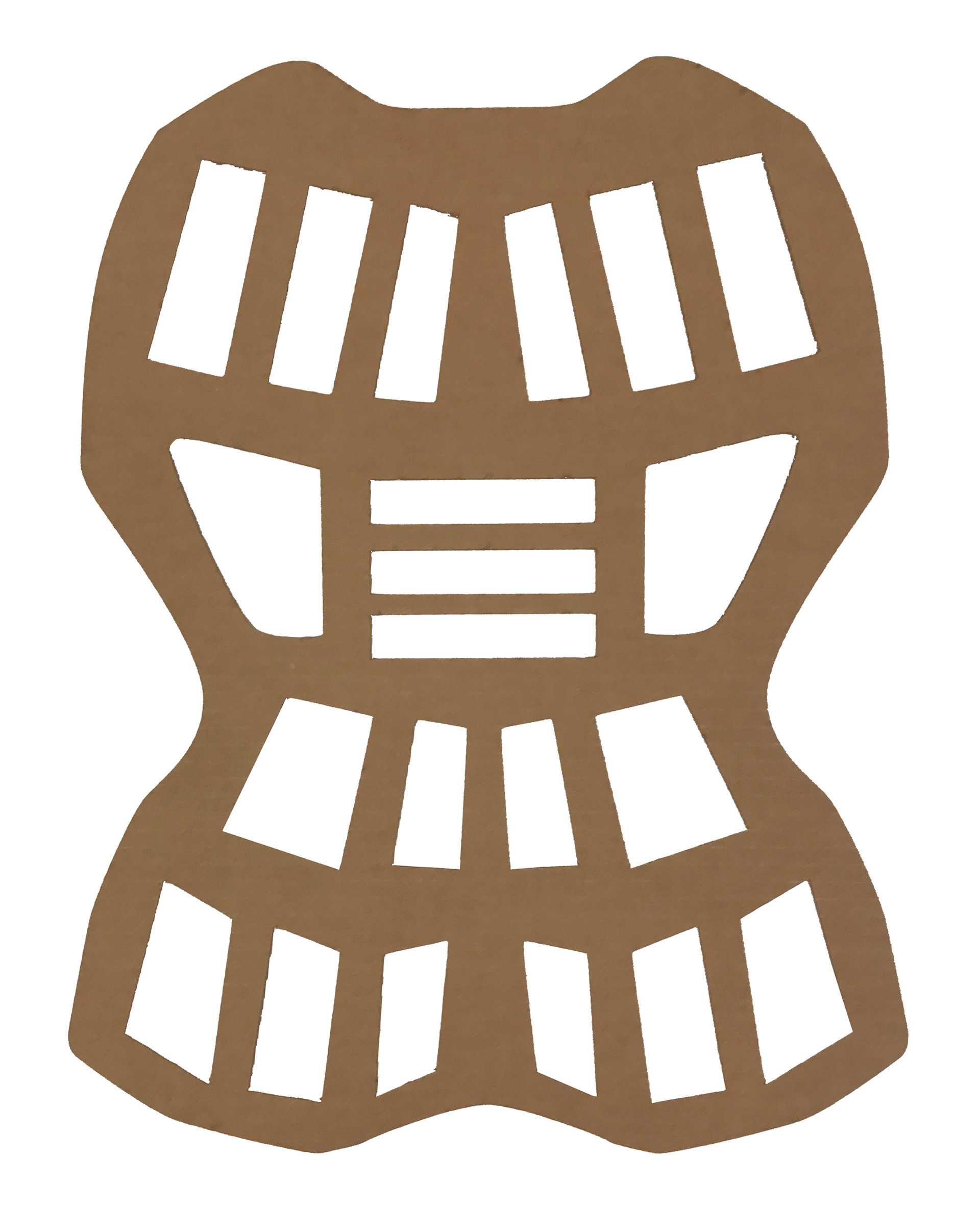

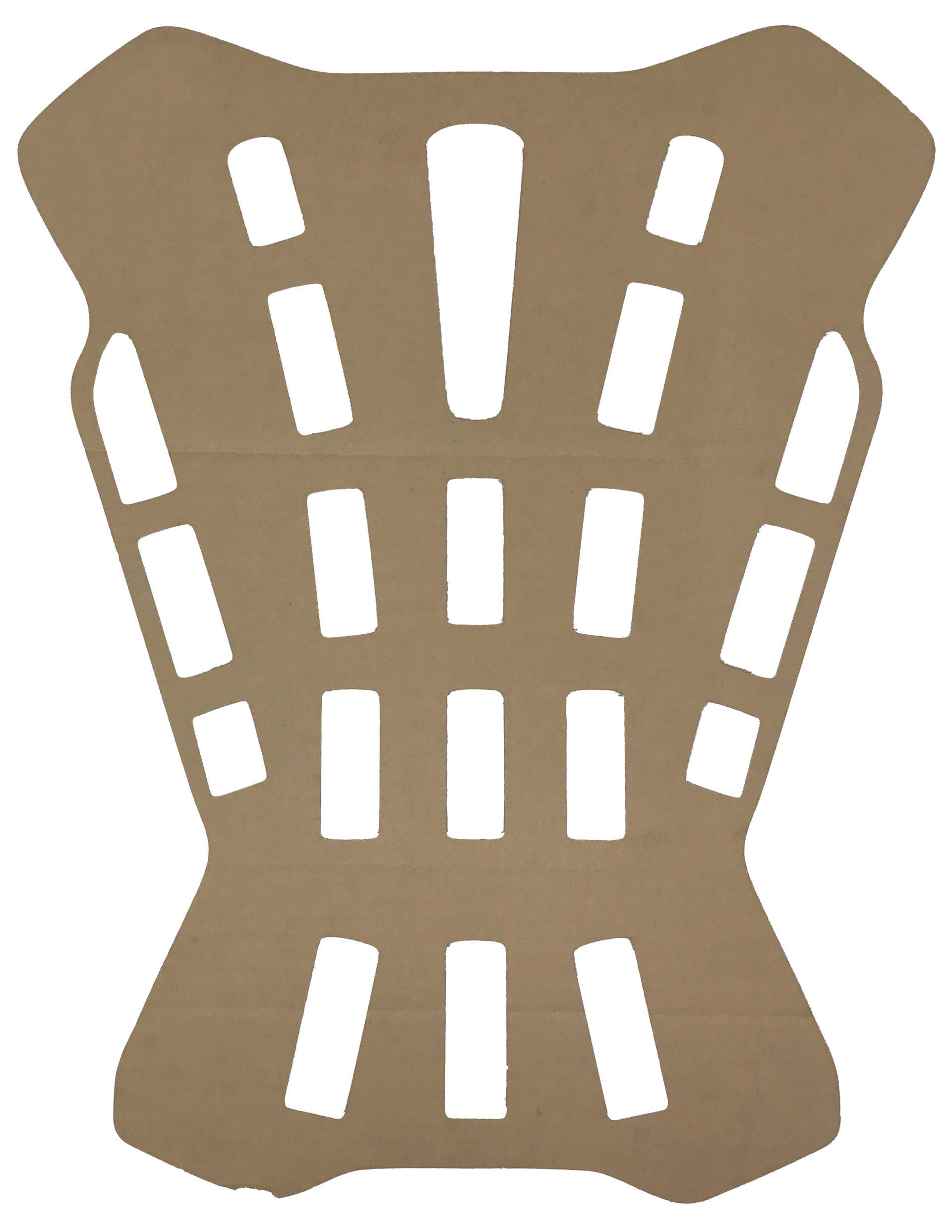

How should lashing points be distributed on the packboard for the best organization of equipment?
![](https://cdn.myportfolio.com/b212697b7ddd3f21c3c2af8784ce4473/6b2dfe49-2da2-44a8-8fcc-7a282b5fdfca_rw_1920.jpg?h=ca59a0b31d5a14e646b644b73ccebda0)
![](https://cdn.myportfolio.com/b212697b7ddd3f21c3c2af8784ce4473/94146464-c2d8-41ed-8d19-4a3ed14745ea_rw_1920.jpg?h=e127e47c4692cd2aebf94900b2579ba0)
![](https://cdn.myportfolio.com/b212697b7ddd3f21c3c2af8784ce4473/104d67da-b8a3-4637-a55f-cdf9ff0c2483_rw_1920.jpg?h=96894de7a9b818919f6d453af3b611fc)
![](https://cdn.myportfolio.com/b212697b7ddd3f21c3c2af8784ce4473/8b645013-0c17-4f57-8a20-8699175d8233_rw_1920.jpg?h=98f2a4ced84a84846ffb8a891b193dfb)
![](https://cdn.myportfolio.com/b212697b7ddd3f21c3c2af8784ce4473/c84b8a3c-7651-4e7b-b0b7-09ac3eb864ff_rw_1920.jpg?h=4dfef08bde9b43ef676eb1fb9e01794d)

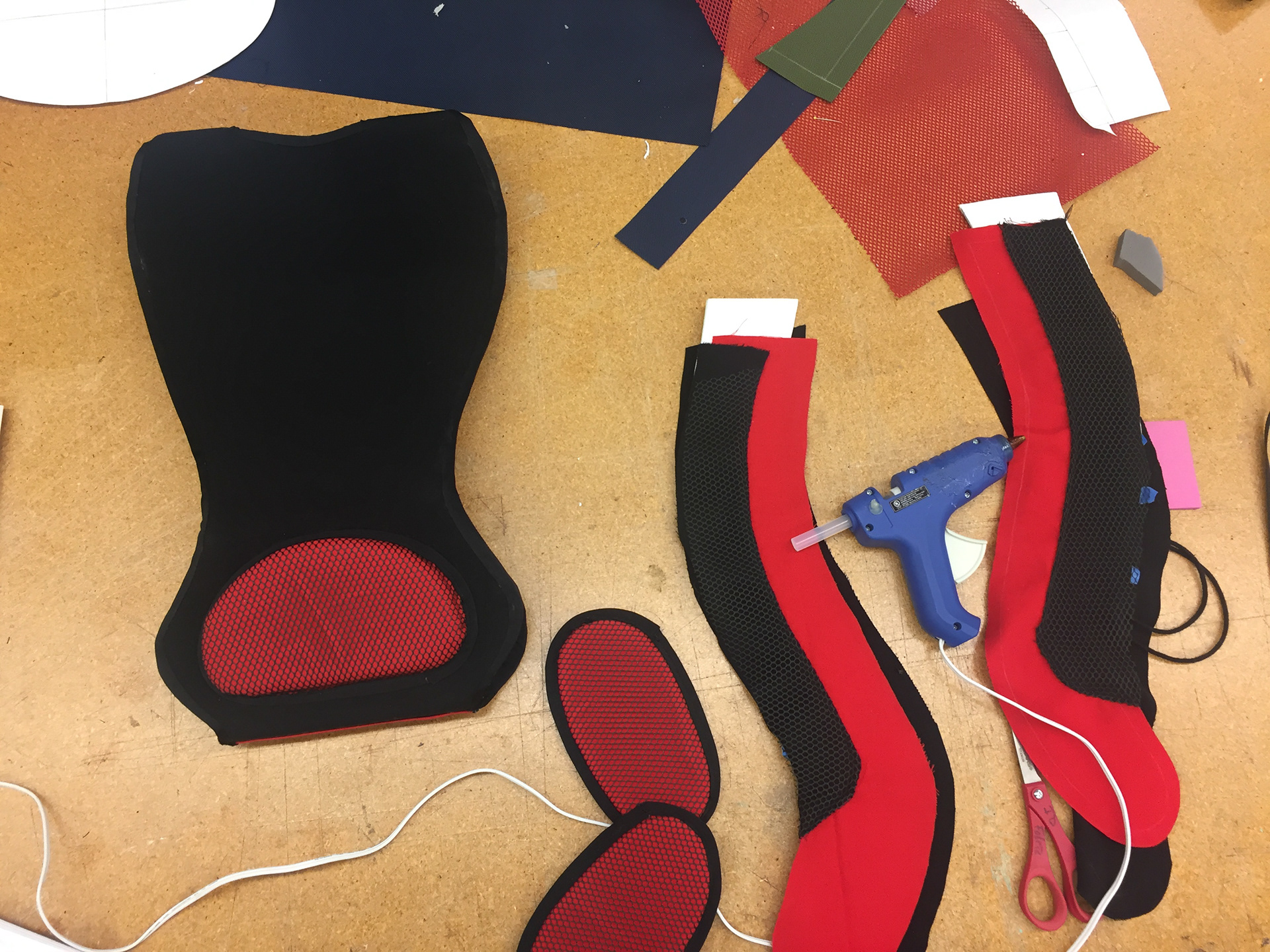

Behind the scenes:
